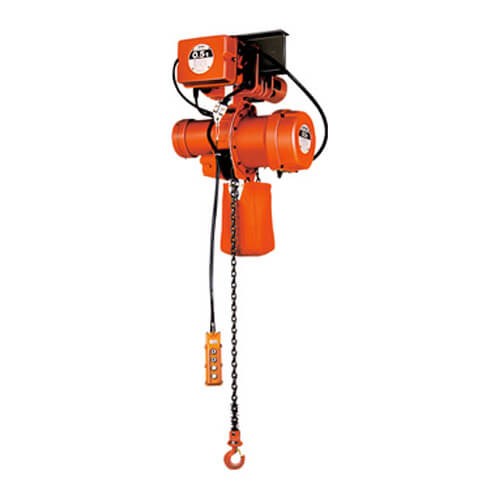

Electric Chain Hoist Nitchi
Pembelian Minimal :
1 unit
Pembelian Maksimal :
100 unit
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
19-01-2016 11:41
Dapatkan Spesifikasi Harga
Electric Chain Hoist Nitchi Produk Terbaik dari
CV.Jamatindo Putra Electric Hoist
Detail Produk
- Mechanical Brake
A mechanical brake is provided in all Nitchi-Matic models. Used in combination with a solenoid brake, it ensures safe and thorough braking operation.
- Solenoid Brake
Nitchi's original direct-current solenoid brake is highly robust, effective, and durable.
- Motor
Designed exclusively for use in electric chain hoists, this high-performance, high-torque motor can withstand frequent use over a long period of time.
- Load Sheave and Chain Guide
Manufactured through high-precision machining and advanced heat treatment, the load sheave and chain guide together ensure smooth winding of load chains, thus contributing to their extended service life.
- Over-Winding Protector
Equipped with a limit switch, the over-winding protector automatically shuts down the control circuit when the lifting or lowering operation has reached its limits.
- Load Chain
Produced through an integrated manufacturing system under strict quality control, Nitchi's super-strong and wear-resistant load chains made from special alloy steel achieve a high level of work safety. For work environments requiring highly corrosion-resistant chains, use of NN chains is recommended.
- Negative Phase Protector
When three-phase power cables are connected in a negative phase, the control circuit is automatically shut off and lifting and lowering are disabled to protect the hoist from damage.
Note: A negative phase refers to a situation in which two three-phase power cables in an electric chain hoist are reversely connected, thus causing the motor to rotate in the opposite direction.
- 24V Low-Voltage Control Circuit
The control circuit is designed to run on low voltage to ensure work safety.
- Oil Bath Lubrication System
By providing increased gear-cooling effect, this system allows a hoist to withstand frequent operation over a long period of time.
- Bottom Hook
A built-in thrust bearing ensures smooth rotation of the hook.
- Push-Button Switch
A small, lightweight, and highly insulated rainproof push-button switch is used. Two-speed models employ a dual-stage push switch.
-
